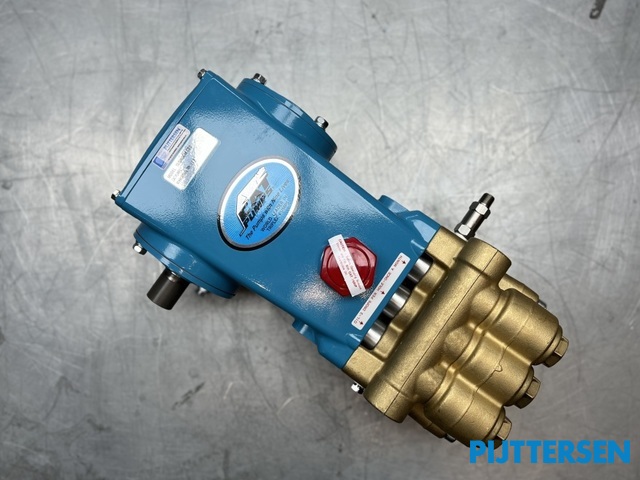

Pijttersen special: 1530RSCM.CO2

The Cat Pumps 1530RSCM.CO2 is an innovative CO2 pump specially designed to move CO2 in liquid form. This pump is used, among other things, to fill cartridges with liquid CO2. And these cartridges can be found in a great many applications. Think of use on drilling platforms, dyeing clothing and perhaps even in your own kitchen.

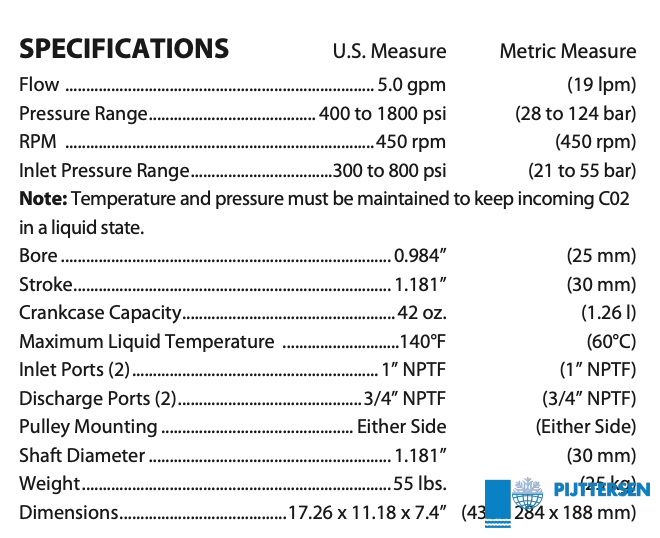

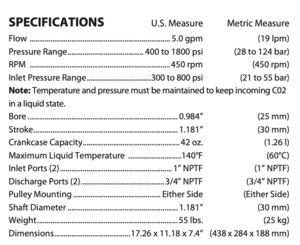

Specifications Cat Pumps 1530RSCM.CO2

The Cat Pumps 1530RSCM.C02 has been specially developed for moving CO2 in liquid form. In the development of this pump, all the challenges that come with moving liquid CO2 have been considered. For example, the inverted manifolds ensure that the air bubbles escape via the inlet and return to the tank. This prevents possible problems due to air bubbles in the discharge line.

In addition, the seals of this pump have been optimized for low temperatures and the low lubricity properties of liquid CO2. This results in improved performance and a longer life of the pump.

The drive ends also feature improved materials and an optimized design to meet the high inlet pressures required to maintain liquid CO2. In addition, vented seal retainers provide additional protection against potential CO2 escape past the pressure seals, preventing damage to the drive ends or pump manifolds.

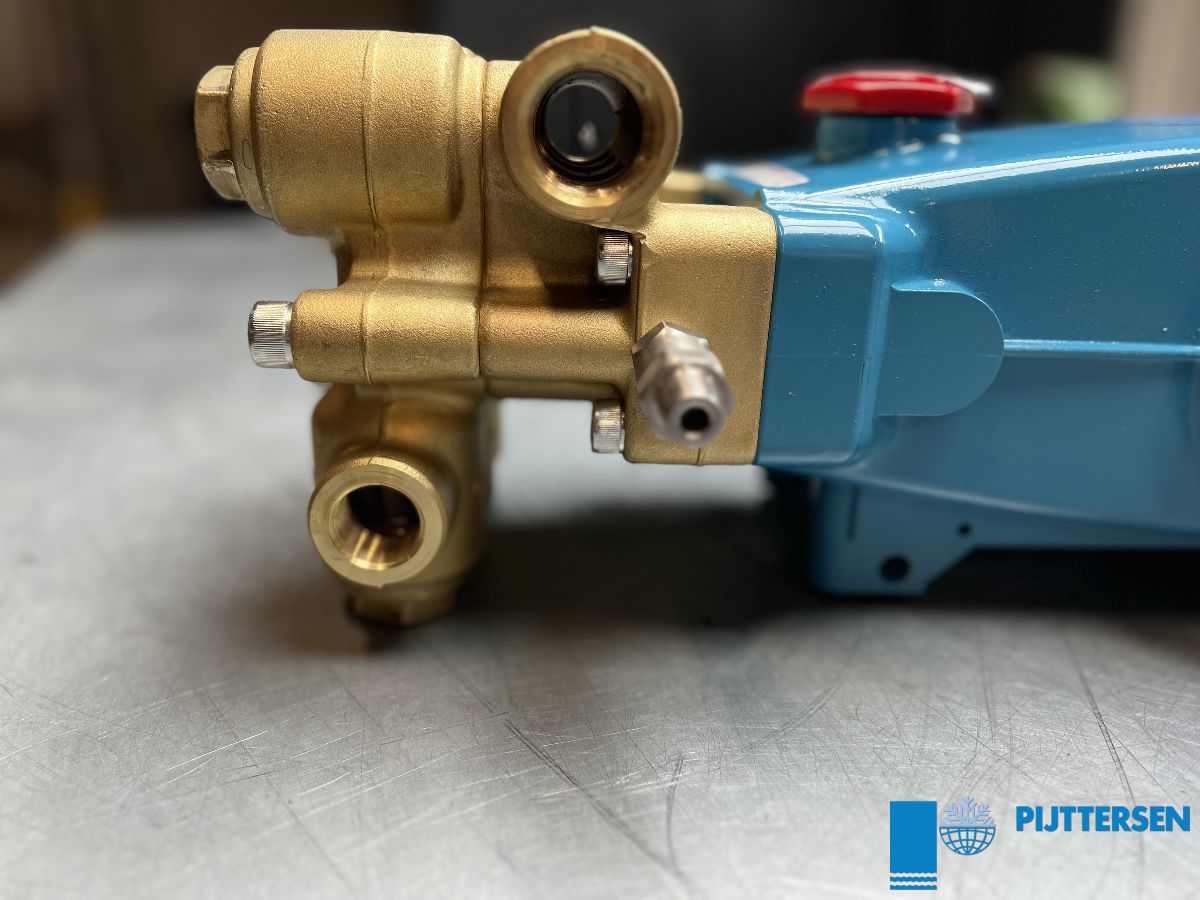

Finally, ported inlet manifolds provide protection against damage caused by CO2 leakage, and the included check valve prevents ambient air from entering the pump manifold.

Want to learn more about the Cat Pumps 1530RSCM.C02 or have another question? Contact us. We are ready to answer your technical questions.
